Rexroth Servo Solenoid Directional Control Valve 4WRPEH6C5B40P-2X/G24K0/A1M

China Rexroth Servo Solenoid Directional Control Valve 4WRPEH6C5B40P-2X/G24K0/A1M fornecedor
Rexroth Servo Solenoid Directional Control Valve 4WRPEH6C5B40P-2X/G24K0/A1M fornecedor Rexroth Servo Solenoid Directional Control Valve 4WRPEH6C5B40P-2X/G24K0/A1M fornecedor

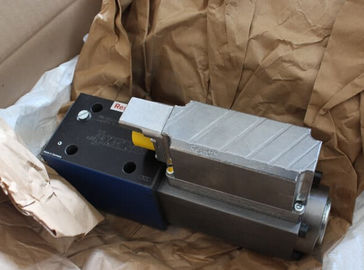

Imagem Grande :  Rexroth Servo Solenoid Directional Control Valve 4WRPEH6C5B40P-2X/G24K0/A1M

Detalhes do produto:

Place of Origin: Germany
Marca: Rexroth
Model Number: Rexroth 4WRPEH6C5B40P-2X/G24K0/A1M Servo Solenoid Directional Control Valve
Contato
Descrição de produto detalhada

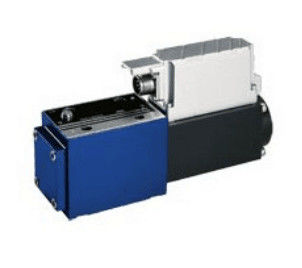

Rexroth 4WRPEH6 Series Servo Solenoid Directional Control Valve
Rexroth Servo Solenoid Directional Control Valve 4WRPEH6C5B40P-2X/G24K0/A1M

Size 6
Unit series 2X
Maximum working pressure P, A, B 315 bar, T 250 bar
Nominal flow 2...40 l/min (Δp 70 bar)

Features
– Directly operated servo solenoid directional control valve, with control piston and sleeve in servo quality
– Actuated on one side, 4/4 fail-safe position when switched off
– Electrical position feedback and on-board electronics (OBE), calibrated at the factory
– Electrical connection 6P+PE Signal input differential amplifier with interface A1 ±10 V or interface F1 4...20 mA (Rsh = 200 Ω)
– Used in electrohydraulic controllers in production and testing systems

Rexroth 4WRPEH6 Series Servo Solenoid Directional Control Valve Ordering Code:
Rexroth Servo Solenoid Directional Control Valve 4WRPEH6C5B40P-2X/G24K0/A1M


Rexroth 4WRPEH6 Series Servo Solenoid Directional Control Valve Model List:



0811404603
4WRPEH6C3B40L-2X/G24K0/A1M
0811404744
4WRPEH6C3B02L-2X/G24K0/A1M
0811404600
4WRPEH6C3B04L-2X/G24K0/A1M
0811404601
4WRPEH6C3B12L-2X/G24K0/A1M
0811404602
4WRPEH6C3B24L-2X/G24K0/A1M
0811404746
4WRPEH6C5B40L-2X/G24K0/A1M
0811404642
4WRPEH6C3B15P-2X/G24K0/A1M
0811404643
4WRPEH6C3B25P-2X/G24K0/A1M
0811404644
4WRPEH6C3B40P-2X/G24K0/A1M
0811404648
4WRPEH6C5B40P-2X/G24K0/A1M
0811404631
4WRPEH6C3B04L-2X/G24K0/F1M
0811404632
4WRPEH6C3B12L-2X/G24K0/F1M
0811404633
4WRPEH6C3B24L-2X/G24K0/F1M
0811404634
4WRPEH6C3B40L-2X/G24K0/F1M
0811404749
4WRPEH6C5B40L-2X/G24K0/F1M
0811404641
4WRPEH6C4B02L-2X/G24K0/A1M
0811404610
4WRPEH6C4B04L-2X/G24K0/A1M
0811404611
4WRPEH6C4B12L-2X/G24K0/A1M
0811404612
4WRPEH6C4B24L-2X/G24K0/A1M
0811404613
4WRPEH6C4B40L-2X/G24K0/A1M
0811404738
4WRPEH6C1B40L-2X/G24K0/A1M
0811404645
4WRPEH6C4B15P-2X/G24K0/A1M
0811404646
4WRPEH6C4B25P-2X/G24K0/A1M
0811404647
4WRPEH6C4B40P-2X/G24K0/A1M
0811404601
4WRPEH6C3B12L-2X/G24KO/A1M
0811404600
4WRPEH6C3B04L-2X/G24KO/A1M
0811404602
4WRPEH6C3B24L-2X/G24KO/A1M
0811404604
4WRPEH6KB50P-2X/G24KO/A1M
0811404610
4WRPEH6C4B04L-2X/G24KO/A1M
0811404611
4WRPEH6C4B12L-2X/G24KO/A1M
0811404612
4WRPEH6C4B24L-2X/G24KO/A1M
0811404613
4WRPEH6C4B40L-2X/G24KO/A1M
0811404621
4WRPEH6C3B04L-2X/G24KO/B5M
0811404622
4WRPEH6C3B24L-2X/G24KO/B5M
0811404623
4WRPEH6C4B12L-2X/G24KO/B5M
0811404626
4WRPEH6C3B15P-2X/G24KO/B5M
0811104628
4WRPEH6K3B50P-2X/G24KO/A1M
0811404631
4WRPEH6C3B04L-2X/G24KO/F1M
0811404633
4WRPEH6C3B24L-2X/G24KO/F1M
0811404634
4WRPEH6C3B40L-2X/G24KO/F1M
0811404635
4WRPEH6C3B25P-2X/G24KO/B5M
0811404637
4WRPEH6C3B40P-2X/G24KO/B5M
0811404638
4WRPEH6C4B40L-2X/G24KO/A1V
0811404639
4WRPEH6CB40L-2X/G24KO/A1M
0811404640
4WRPEH6CB40L-2X/G24KO/F1M
0811404641
4WRPEH6C4B02L-2X/G24KO/A1M
0811404642
4WRPEH6C3B15P-2X/G24KO/A1M
0811404644
4WRPEH6C3B40P-2X/G24KO/A1M
0811404645
4WRPEH6C4B15P-2X/G24KO/A1M
0811404646
4WRPEH6C4B25P-2X/G24KO/A1M
0811404647
4WRPEH6C4B40P-2X/G24KO/A1M
