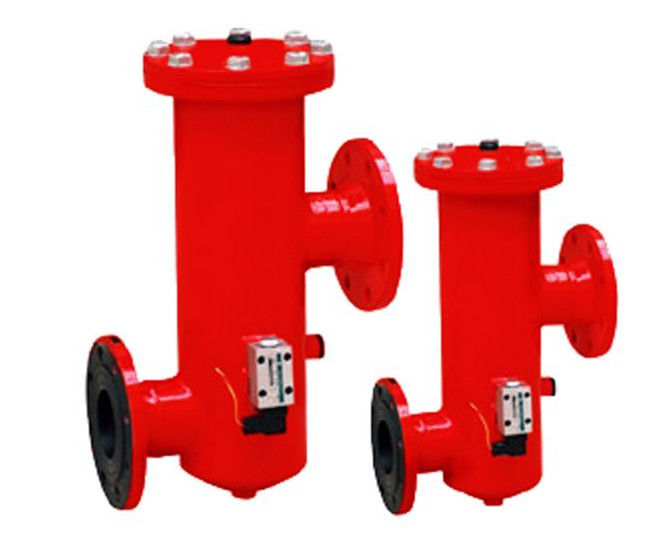

RLF RETURN LINE FILTER SERIES RLF-60×*P

RLF RETURN LINE FILTER SERIES RLF-60×*P

RLF RETURN LINE FILTER SERIES RLF-60×*P

Detalhes do produto:

Place of Origin: China
Marca: Saar
Model Number: RLF-60×*P RETURN LINE FILTER SERIES
contacto
Descrição de produto detalhada



Welcome to "Saar Hydraulic", your one-stop hydraulics components resource. Our experienced team has a wealth of experience in supplying hydraulic pumps, valves,cylinders,filters,filter elements.

RLF RETURN LINE FILTER SERIES

RLF RETURN LINE FILTER SERIES RLF-60×*P

RLF series filter is used in return line, it can remove all the contaminants from the hydraulic system, and allow clean oil flow back to the tank.. the elelment of this series is made of glass fibre, it has effiency and filtration, large dirt capacity and lower initial pressure drop. There is a by-pass vavle and a contamination indicator. The indicator will act when pressure drop across filter element attains 0.35Mpa, the element should be changed in time. If the syetemcan not be stopped or nobaby replaces the element, the by-pass vavle will open to protect the hydraulic syetem safty.









RLF RETURN LINE FILTER SERIES RLF-60×*P



Product Specification:



Model

DIA
.(mm)

Flow
(L/min)

Filter
.(μm)

Pressure
(MPa)

Pressure
(MPa)

Indicator power

(V/W)

 By-Pass valve setting

(MPa)

Weight(kg)

Model of Element


Initial

Max

RLF-60×P

25

60

1
3
5
10
20
30

1.6

0.2

0.35

24/48
220/50

0.4

3.7

SFX-60×

RLF-110×P

110

4.2

SFX-110×

RLF-160×P

40

160

6.8

SFX-160×

RLF-240×P

240

7.5

SFX-240×

RLF-330×P

50

330

10.2

SFX-330×

RLF-500×P

500

11.3

SFX-500×

RLF-660×P

80

660

24.4

SFX-660×

RLF-850×P

850

26

SFX-850×

RLF-950×P

100

950

34.1

SFX-950×

RLF-1300×P

1300

38.8

SFX-1300×
