Name: Rexroth 4WRAE6E30-2X/G24K31/F1V Proportional Directional Valves
Brand: Saar HK Electronic Limited
SKU: Rexroth Proportional Directional Valves 4WRAE6E30-2X/G24K31/F1V
Availability: InStock

Casa Produtos Solenoid Directional Valves

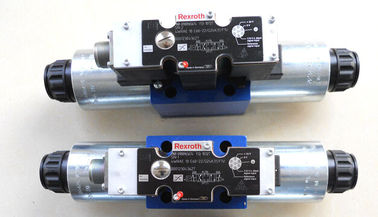

Rexroth 4WRAE6E30-2X/G24K31/F1V Proportional Directional Valves

Detalhes do produto:

Place of Origin:	Germany
Marca:	Rexroth
Model Number:	Rexroth Proportional Directional Valves 4WRAE6E30-2X/G24K31/F1V

contacto

Descrição de produto detalhada

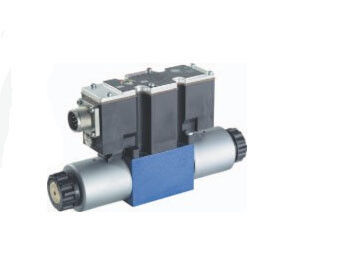

Rexroth Direct Operated Proportional Directional Valves Type 4WRA/4WRAE

Nominal sizes 6 and 10

Component series 2X

Maximum operating pressure 315 bar

Maximum flow: 42 l/min (NS6)

75 l/min (NS10)

Features

– Direct operated proportional directional valve without electrical

position feedback and integrated electronics (OBE) for

type 4WRAE

– Control the direction and magnitude of a flow

– Actuation by means of proportional solenoids with central

thread and removable coil

– For subplate mounting:

Connection position to ISO 4401

Subplates to catalogue sheets RE 45052 (NS6) or RE 45054

(NS10) separate order, see page 12 to 15

– Spring centred control spool

– Control electronics

• 4WRAE:

- integrated electronics (OBE) with voltage input or current

input (A1 resp. F1)

• 4WRA:

- digital or analogue amplifier in Eurocard format

(separate order)

- analogue module amplifier

Rexroth Direct Operated Proportional Directional Valves Type 4WRA/4WRAE

Rexroth Direct Operated Proportional Directional Valves Type 4WRA/4WRAE Model List

R978916639	4WRAE6E03-2X/G24K31/A1V
R900953168	4WRAE6E03-2X/G24N9K31/A1V
R901066051	4WRAE6E03-2X/G24N9K31/F1V
R900954069	4WRAE6E07-2X/G24K31/A1V
R901201706	4WRAE6E07-2X/G24K31/A1V-280
R901192723	4WRAE6E07-2X/G24K31/A1V-316
R900759329	4WRAE6E07-2X/G24K31/F1V
R900925006	4WRAE6E07-2X/G24N9K31/A1V
R900925456	4WRAE6E07-2X/G24N9K31/F1V
R901015564	4WRAE6E1-07-2X/G24K31/A1V
R900617493	4WRAE6E1-07-2X/G24K31/F1V
R901355164	4WRAE6E1-07-2X/G24N9K31/A1V
R900711880	4WRAE6E1-07-2X/G24N9K31/F1V
R900954072	4WRAE6E1-15-2X/G24K31/A1V
R900738355	4WRAE6E1-15-2X/G24K31/F1V
R900753599	4WRAE6E1-15-2X/G24N9K31/A1V
R900954073	4WRAE6E1-30-2X/G24K31/A1V
R901160386	4WRAE6E1-30-2X/G24K31/F1V
R900928872	4WRAE6E1-30-2X/G24N9K31/A1V
R900947058	4WRAE6E1-30-2X/G24N9K31/F1V
R900954070	4WRAE6E15-2X/G24K31/A1V
R901282085	4WRAE6E15-2X/G24K31/A1V-280
R901019997	4WRAE6E15-2X/G24K31/F1V
R900909389	4WRAE6E15-2X/G24N9K31/A1V
R900947059	4WRAE6E15-2X/G24N9K31/F1V
R901251370	4WRAE6E15-2X/G24N9K31/F1V-660
R900954071	4WRAE6E30-2X/G24K31/A1V
R901362883	4WRAE6E30-2X/G24K31/A1V-660
R901015613	4WRAE6E30-2X/G24K31/F1V
R900558355	4WRAE6E30-2X/G24N9K31/A1V
R900931485	4WRAE6E30-2X/G24N9K31/F1V
R901163774	4WRAE6E30-2X/G24N9K31/F1V-660
R900957274	4WRAE6E3-30-2X/G24N9K31/F1V
R900745630	4WRAE6EA07-2X/G24K31/A1V
R900966133	4WRAE6EA07-2X/G24N9K31/A1V
R900723376	4WRAE6EA07-2X/G24N9K31/F1V
R900954074	4WRAE6EA15-2X/G24K31/A1V
R901145773	4WRAE6EA15-2X/G24K31/F1V
R900750718	4WRAE6EA15-2X/G24N9K31/A1V
R900957490	4WRAE6EA15-2X/G24N9K31/F1V
R900954075	4WRAE6EA30-2X/G24K31/A1V
R901021332	4WRAE6EA30-2X/G24K31/F1V
R900937158	4WRAE6EA30-2X/G24N9K31/A1V
R900938373	4WRAE6EA30-2X/G24N9K31/F1V
R900929851	4WRAE6EB07-2X/G24N9K31/A1V
R900916594	4WRAE6EB15-2X/G24K31/A1V
R900935661	4WRAE6EB15-2X/G24N9K31/A1V
R900963738	4WRAE6EB15-2X/G24N9K31/F1V
R900969665	4WRAE6EB30-2X/G24N9K31/A1V
R900935958	4WRAE6M30-2X/G24N9K31/A1V
R901117558	4WRAE6V03-2X/G24N9K31/A1V
R900703358	4WRAE6V07-2X/G24N9K31/A1V
R901306165	4WRAE6V07-2X/G24N9K31/F1V
R901201460	4WRAE6V1-07-2X/G24N9K31/F1V
R901201458	4WRAE6V1-15-2X/G24N9K31/F1V
R900965020	4WRAE6V1-30-2X/G24N9K31/F1V
R900758996	4WRAE6V15-2X/G24K31/A1V
R901250162	4WRAE6V15-2X/G24N9K31/A1V
R900935370	4WRAE6V30-2X/G24N9K31/A1V
R901424158	4WRAE6V30-2X/G24N9K31/F1V
R900736894	4WRAE6W03-2X/G24N9K31/A1V
R900618361	4WRAE6W03-2X/G24N9K31/F1V
R900954076	4WRAE6W07-2X/G24K31/A1V
R900778280	4WRAE6W07-2X/G24K31/F1V
R900932003	4WRAE6W07-2X/G24N9K31/A1V
R900950144	4WRAE6W07-2X/G24N9K31/F1V
R901026400	4WRAE6W1-07-2X/G24K31/A1V
R901099279	4WRAE6W1-07-2X/G24K31/F1V
R900947785	4WRAE6W1-07-2X/G24N9K31/A1V
R900958128	4WRAE6W1-07-2X/G24N9K31/F1V
R900954079	4WRAE6W1-15-2X/G24K31/A1V
R901018004	4WRAE6W1-15-2X/G24K31/F1V
R900913442	4WRAE6W1-15-2X/G24N9K31/A1V
R900950774	4WRAE6W1-15-2X/G24N9K31/F1V
R900954080	4WRAE6W1-30-2X/G24K31/A1V
R900974817	4WRAE6W1-30-2X/G24K31/F1V
R900913445	4WRAE6W1-30-2X/G24N9K31/A1V
R900941258	4WRAE6W1-30-2X/G24N9K31/F1V
R900954077	4WRAE6W15-2X/G24K31/A1V
R900976919	4WRAE6W15-2X/G24K31/F1V
R900908938	4WRAE6W15-2X/G24N9K31/A1V
R900908195	4WRAE6W15-2X/G24N9K31/F1V
R900763437	4WRAE6W30-2X/G24JK31/A1V
R900954078	4WRAE6W30-2X/G24K31/A1V
R900762072	4WRAE6W30-2X/G24K31/F1V
R900900987	4WRAE6W30-2X/G24N9K31/A1V
R900943826	4WRAE6W30-2X/G24N9K31/F1V
R901337221	4WRAE6W30-2X/G24N9K31/F1V-660
R900975416	4WRAE6W3-30-2X/G24N9K31/A1V
R900786463	4WRAE6WA07-2X/G24K31/A1V
R900783251	4WRAE6WA07-2X/G24K31/F1V
R900946529	4WRAE6WA07-2X/G24N9K31/A1V
R900954081	4WRAE6WA15-2X/G24K31/A1V
R900951675	4WRAE6WA15-2X/G24N9K31/A1V
R900901182	4WRAE6WA15-2X/G24N9K31/F1V
R900954082	4WRAE6WA30-2X/G24K31/A1V
R901100348	4WRAE6WA30-2X/G24K31/F1V
R900962407	4WRAE6WA30-2X/G24N9K31/A1V
R900752021	4WRAE6WA30-2X/G24N9K31/F1V
R901170924	4WRAE6WB07-2X/G24N9K31/F1V
R900913647	4WRAE6WB15-2X/G24N9K31/A1V
R901239200	4WRAE6WB15-2X/G24N9K31/F1V
R900941851	4WRAE6WB30-2X/G24N9K31/A1V
R900960390	4WRAE6XA00-2X/G24K31/A1V-114
