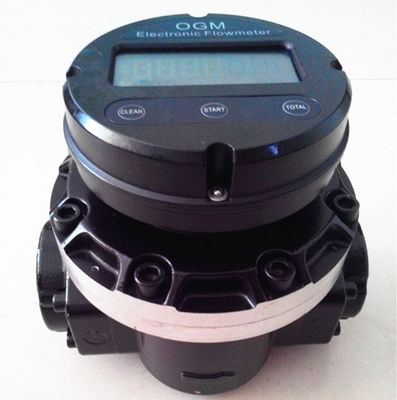

Electric Digital Flow Meter OGM-E-25

Imagem Grande : Electric Digital Flow Meter OGM-E-25

Detalhes do produto:

Place of Origin:	China
Marca:	ShenGang
Model Number:	Electric Digital Flow Meter OGM-E-25

Contato

Descrição de produto detalhada

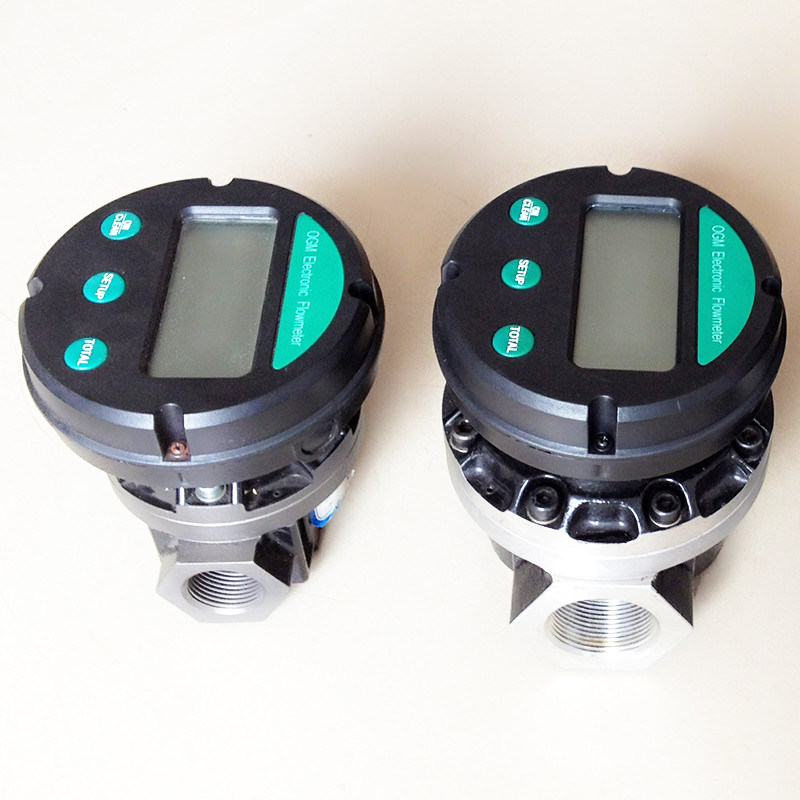

Electric Digital Flow Meter

Aluminum Oval gear Flow Meter(OGM-E-25/40/50) has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability, applying in the petroleum, chemical, food industry, etc.

Advantages
1. Low pressure drop;
2. Compact sixe, easy maintenance;
3. Easy to read and operate mechanical display;
4. Horizontally and vertically flexibility of installation options;
5. 5-digital sub-total, with floating point from 0.01 to 99999.99, 7-digital non-resettable totalize;
6. 3.6V lithium battery power, durable service;
7. Applying in the petroleum, chemical, food industry, etc.;

Model	OGM-E-25	OGM-E-40	OGM-E-50
Inlet	BSPF/NPT 1"	BSPF/NPT 1.5"	BSPF/NPT 2"
Min Flows	20L/min	25L/min	30L/min
Max Flows	120L/min	250L/min	300L/min
Precision	± 0.5%	± 0.5%	± 0.5%
Repeatability	± 0.3%	± 0.3%	± 0.3%
Max. Viscosity	1000cps	1000cps	1000cps
Max. Operating Pressure	3.4MPa	1.8MPa	1.8MPa

Contacto

Saar HK Electronic Limited

Pessoa de Contato: Mr. Jason Liu

Telefone: 86-21-59561370

Fax: 86-21-50123536
